Includes

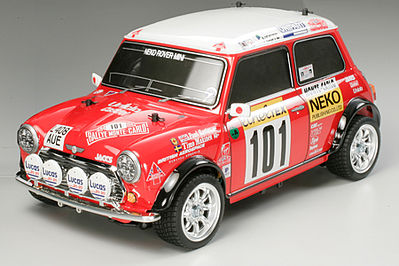

• M-05 chassis, tires, wheels, foam inserts, Mini Cooper body, decals,
• 20 tooth pinion gear, shocks, ESC, motor and instruction manual

Features

• Chassis: M5 resin monocoque design, composite construction wit extensions to build a short, medium or long wheelbase chassis.
• Drive: Front wheel.
• Shocks: Plastic body friction type.
• Shock Towers: Composite construction.
• Motor: 540 size.
• Electronic Speed Control: Tamiya TEU-104BK with reverse, TAMM4541.
• Gearbox: Sealed, integral with chassis.
• Transmission: Single speed, ball bearing equipped.
• Differential: Three bevel gear.
• Body: Polycarbonate, Mini Cooper.
• Suspension: Four wheel independent double wishbone.
• Tires: Treaded 60D radial 0.98" (25mm) wide, 2.3" (59mm) diamete with foam inserts.
• Wheels: Plastic, two sets, eight-spoke, one set matte gold finish one set matte silver finish, 0.94" (24mm) wide, 1.5" (38mm diameter.
• Camber: Non-adjustable, camber refers to the angle of the tops of th tires from vertical when viewed from front or behind vehicle.
• Caster: Adjustable, caster/toe-in refers to the angle of the fron suspension when viewed from the side of the car in relation to th chassis.
• Steering: Three piece tie-rod linkage.

Requirements & Suggestions

• Radio: 2-channel
• AA Batteries: 8 for transmitter
• Battery: 6-cell stick with standard connector
• Battery Charger: Peak type recommended
• Building and track equipment
